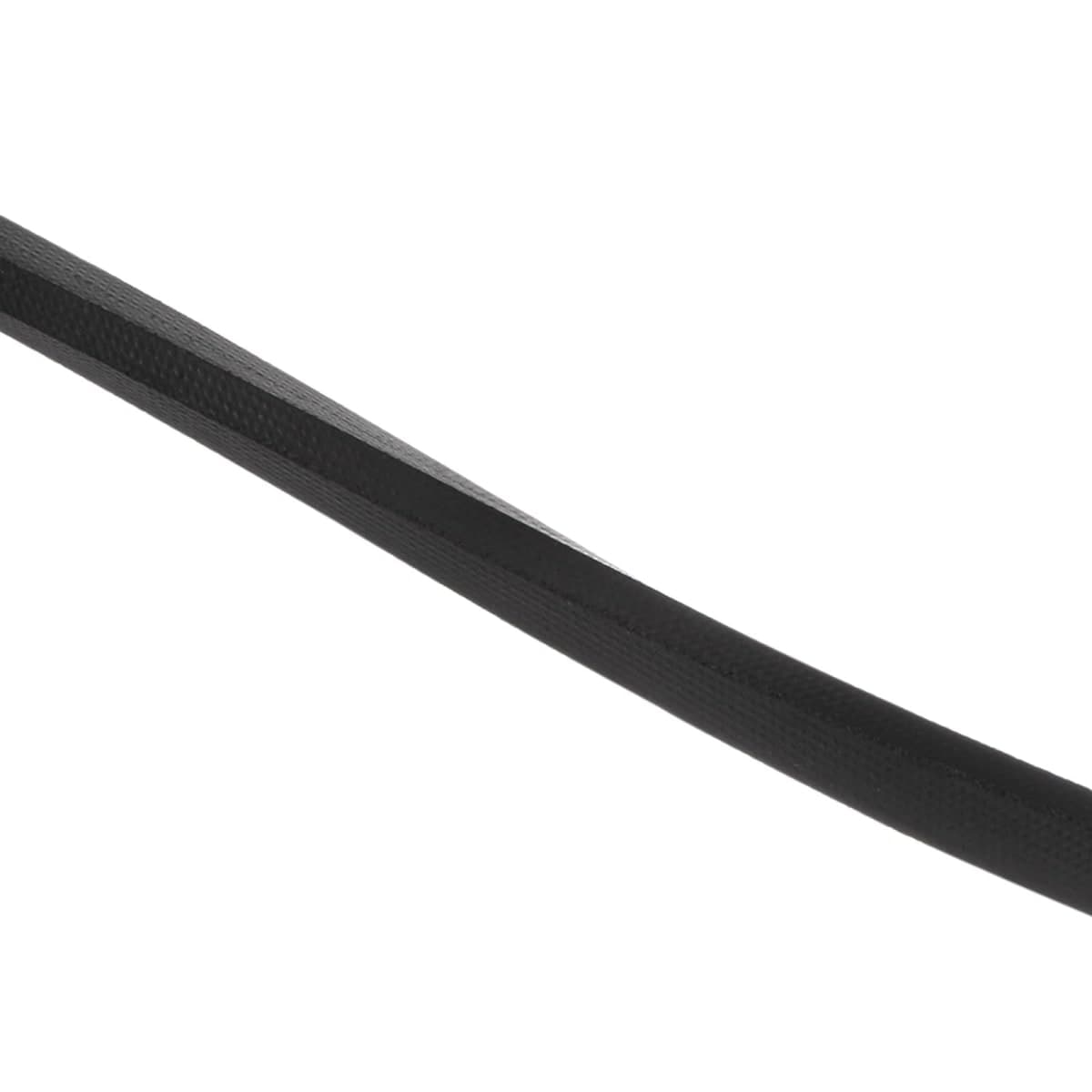

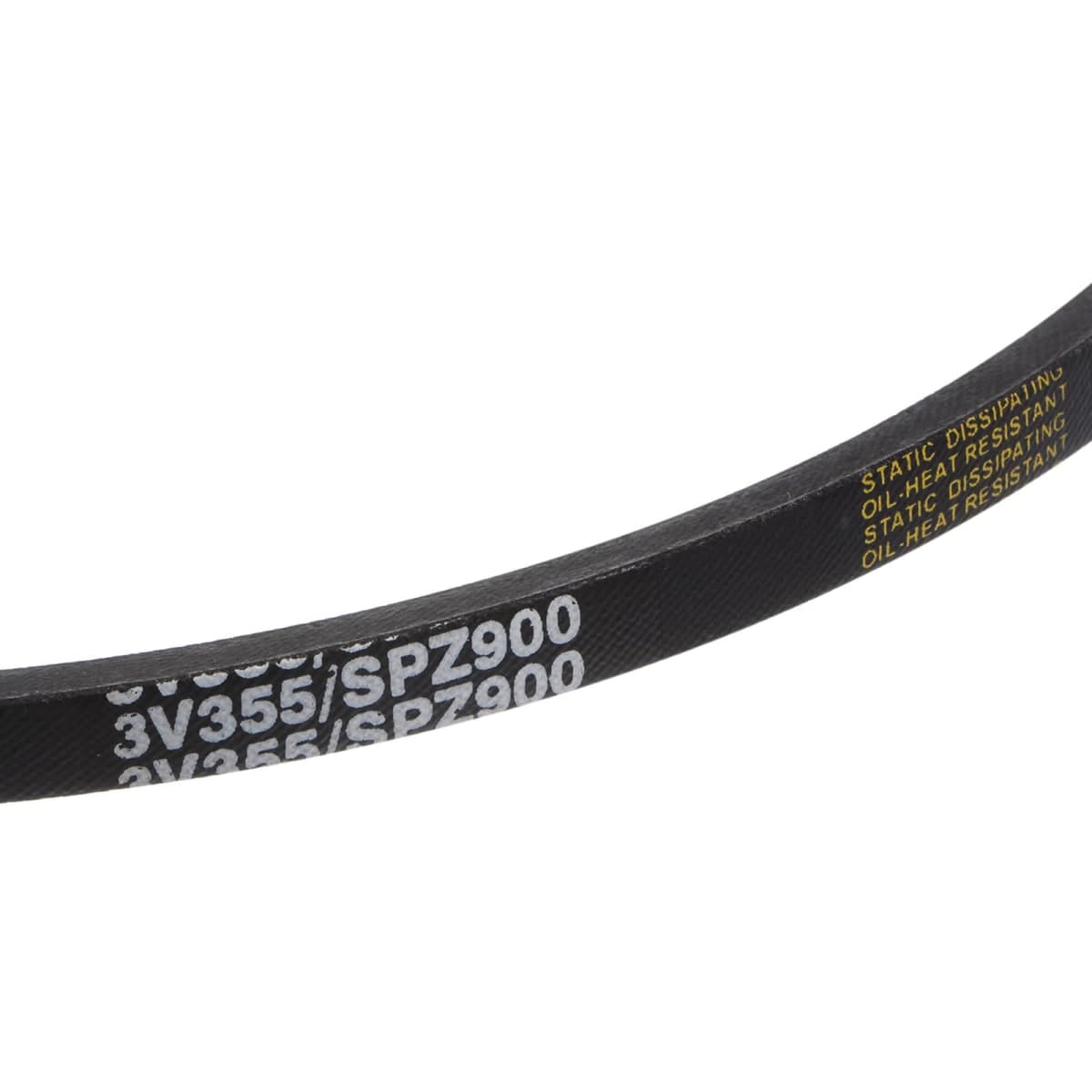

uxcell 3V355 Rubber V Belts 35.5" Length x 0.38" Width x 0.31" Thick

Descriptions

V-belts are the most common type of drive belt used for power transmission. They provide the best combination of traction, speed transfer, load distribution, and extended service life.

The 3V v-belt is made of neoprene rubber material, which provides excellent wear resistance, corrosion resistance, and high-temperature resistance.

It contains a high-density polyester hard cord inside, which is specially engineered and twisted, offering high strength and extremely low extensibility.

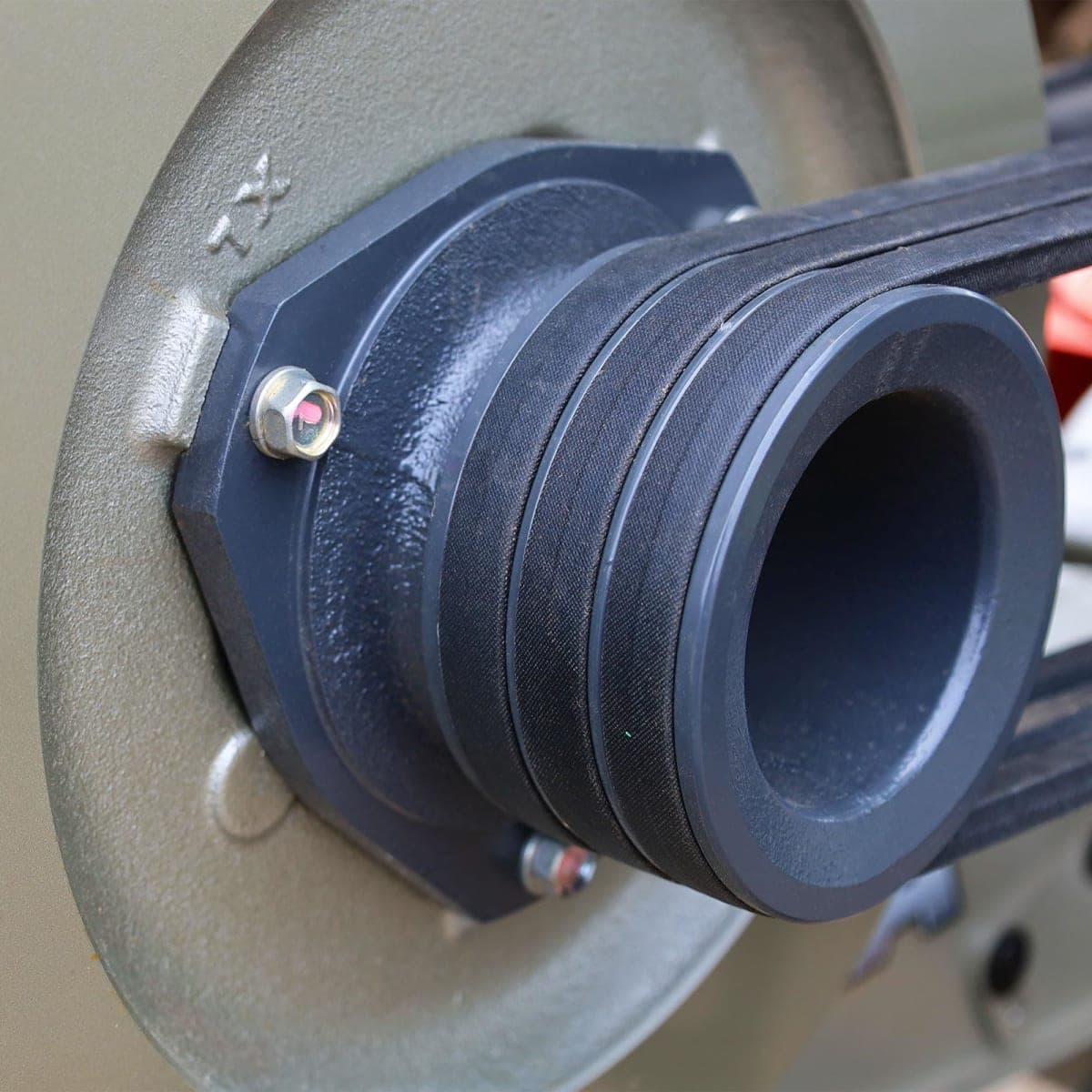

Fit for many industrial machinery, appliances, agricultural equipment, and power tools, such as tractors, motors, pumps, and compressors.

Proper belt tension and pulley alignment should be maintained during operation. Too little tension may cause slippage and wear on the belt and pulleys; too much tension makes the stress on the belt, pulleys, and shaft too great.

How to measure the length of the required belt?Wrap the rope around the two pulleys

Make a mark

Place the marked rope on a flat surface and use a tape measure to measure the distance between the two marks, which is the inner circumference of the belt

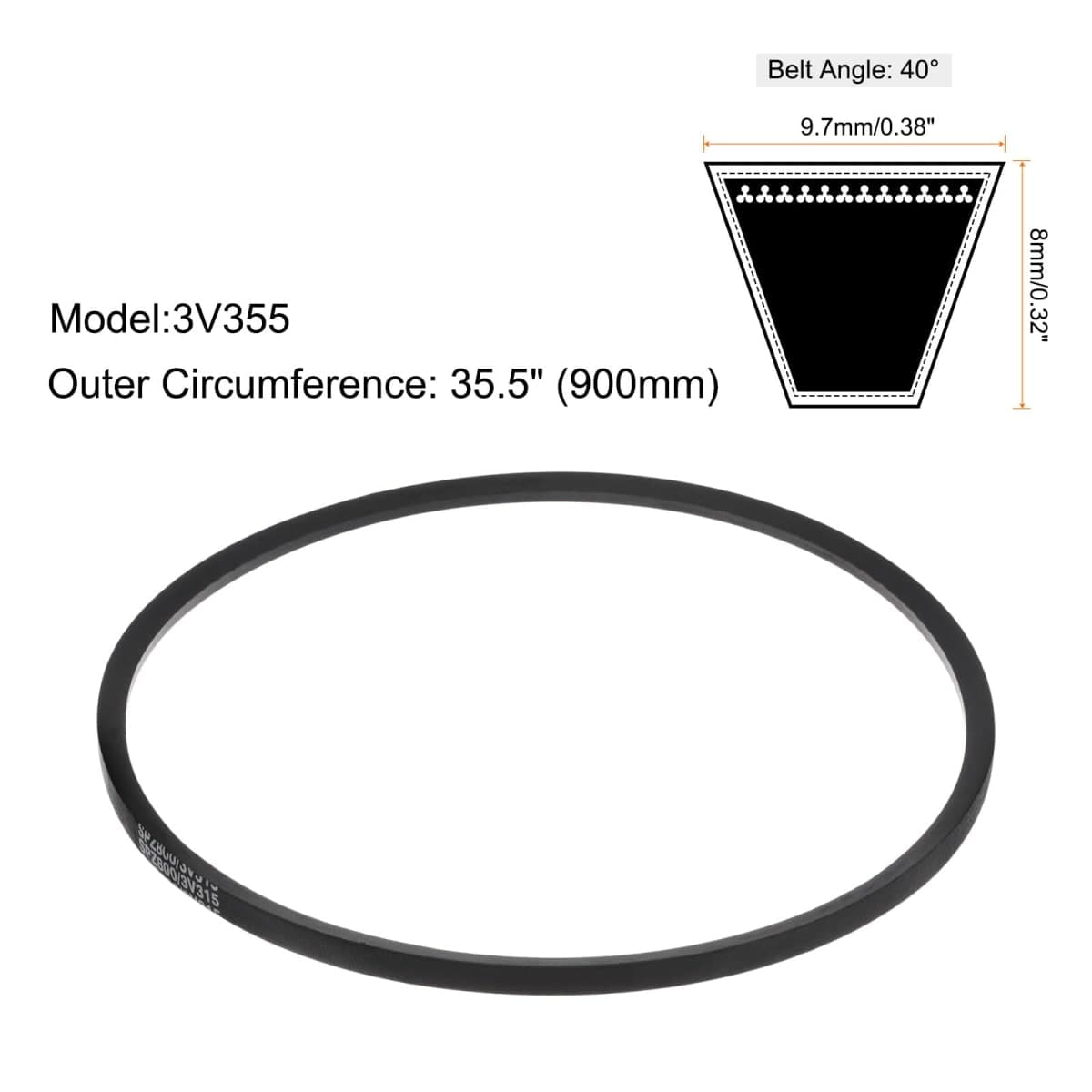

• Model:3V355; Outer Circumference: 35.5" (902mm); Width: 0.38" (9.7mm); Thickness: 0.315" (8mm); Belt Angle: 40 degrees.
• The 3V v-belt is made of neoprene rubber material, which provides excellent wear resistance, corrosion resistance, and high-temperature resistance.
• It contains a high-density polyester hard cord inside, which is specially engineered and twisted, offering high strength and extremely low extensibility.
• Fit for many industrial machinery, appliances, agricultural equipment, and power tools, such as tractors, motors, pumps, and compressors.
• Notice: Proper belt tension and pulley alignment should be maintained during operation. Too little tension may cause slippage and wear on the belt and pulleys; too much tension makes the stress on the belt, pulleys, and shaft too great.
